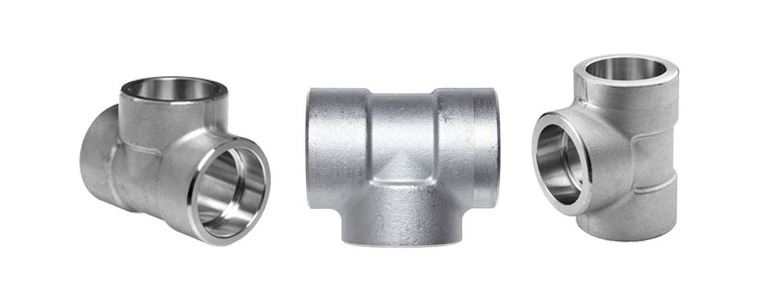

Socket Weld Tee
Socket Weld Tee
Our offered Forged Socket Weld Equal Tee makes 90° branch from the main run of pipe. We are also the largest independent stockholder of Socket Weld Equal Tee with huge ready stock. We supply these Socket Weld Tees to various industrial applications like chemical processing, oil refineries, petrochemical and many other industries. ANSI B16.11 Forged Socket Weld Tee is leakage proof and corrosion-resistant. Socket Weld Equal Tees are used for toxic lines conveying flammable or expensive material where no leakage can be permitted, and for steam 300 to 600 PSI.

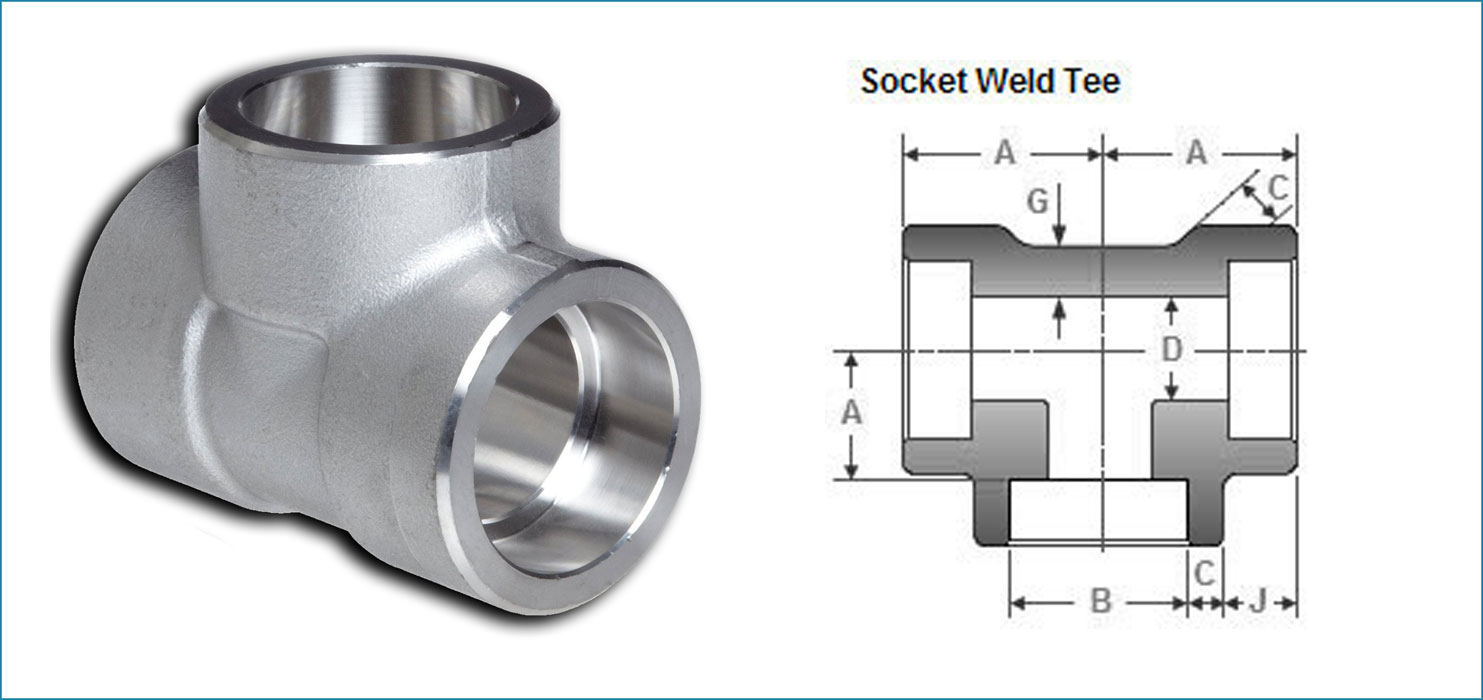

Product Structure
ANSI/ASME B16.11 Socket Weld Tee Standard Specification
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/2″NB TO 4″NB IN |
| Class | 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT |
| Form | Sockte Weld Tee, Socket Weld Equal Tee |
| Production Grades | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
Manufacturing Standards of Socket Weld Equal Tee
| ASME: | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
Forged Socket Weld Tee Material Grades
Nickel Alloy Forged Socket Weld Tee :
ASTM / ASME SB 336, ASTM / ASME SB 564 / 160 / 163 / 472, UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)
Stainless Steel Forged Socket Weld Tee :
ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A182 TP304, TP304L, TP316, TP316L
Duplex & Super Duplex Steel Forged Socket Weld Tee :
ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760, S 32950.
Carbon Steel Forged Socket Weld Tee :
ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2, ASTM / ASME A 53 GR. A & B, ASTM A 106 GR. A, B & C. API 5L GR. B, API 5L X 42, X 46, X 52, X 60, X 65 & X 70. ASTM / ASME A 691 GR A, B & C
Alloy Steel Forged Socket Weld Tee :
ASTM / ASME A 182, ASTM / ASME A 335, ASTM / ASME A 234 GR P 1, P 5, P 9, P 11, P 12, P 22, P 23, P 91, ASTM / ASME A 691 GR 1 CR, 1 1/4 CR, 2 1/4 CR, 5 CR, 9CR, 91
Copper Alloy Steel Forged Socket Weld Tee : ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 C 71500, ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)
ASME B16.11 Forged Socket Weld Tee Available Types
| Forged Socket weld Tee | Socket Welding Reducing Tee |
| 150 lb. Socket Weld Fittings Pipe Tee | 2 inch Socket weld Tee |
| ASME B16.11 Socket weld Equal Tee | 3000LB Socket Weld Tee |
| Socket Weld Tee Fittings | class 6000 Socket Weld Forged Tee |
| ANSI B16.11 Forged Socket Weld Tee | BS 3799 Forged Socket Weld Tee |
| Forged Socket weld Equal Tee | Socket Weld Equal Tee Weight |
| Socket weld Tee Reducer | High Quality Socket weld Tee |
| 1 inch Socket Weld Tee | Socket Weld Pipe Tee |
